Steel Bar Straightening Machine

Steel Bar Straightening Machine

Steel bar straightening machine is a highly efficient tool designed for recycling and processing discarded, bent, and waste steel bars. This steel bar straightening machine comes in a variety of models, mainly suitable for processing steel bars from 6 to 25 mm in diameter, ensuring smooth, precise straightening and cutting of used steel bars, making it suitable for reuse in construction projects and manufacturing.

The compact size of this scrap steel recycling machine makes it easy to maneuver in various working environments. In addition, the machine is easy to operate and usually requires only one worker to operate. Its processing efficiency is high, and it can process 30 meters to 35 meters of steel bar per minute.

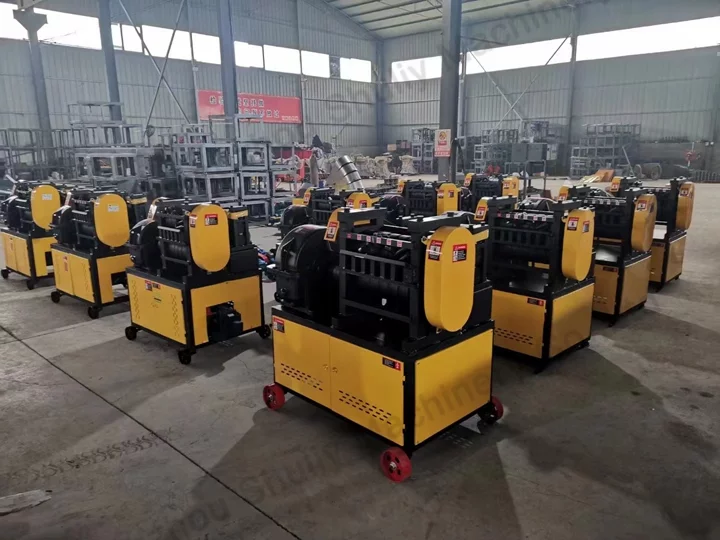

Rebar Straightener Factory Stock Photo
Rebar Straightener Factory Stock Photo

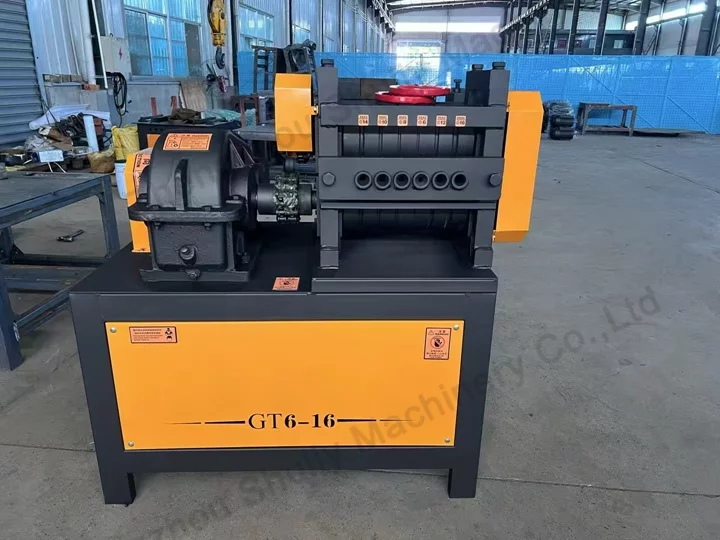

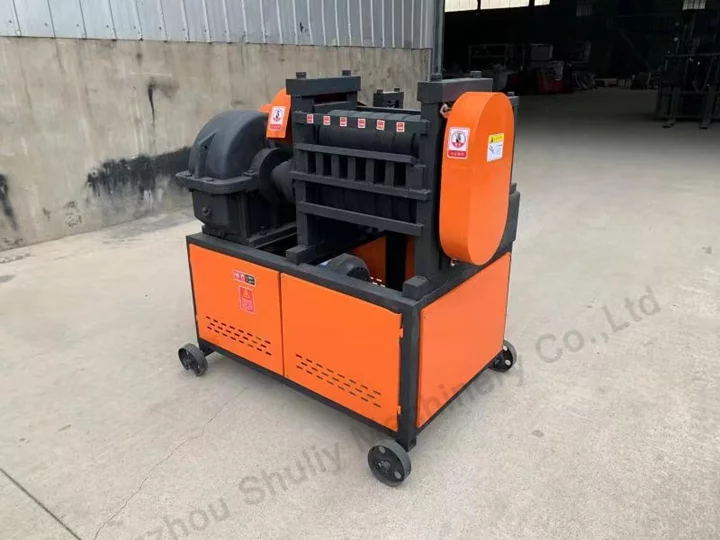

Structure Of Steel Bar Straightening Machine

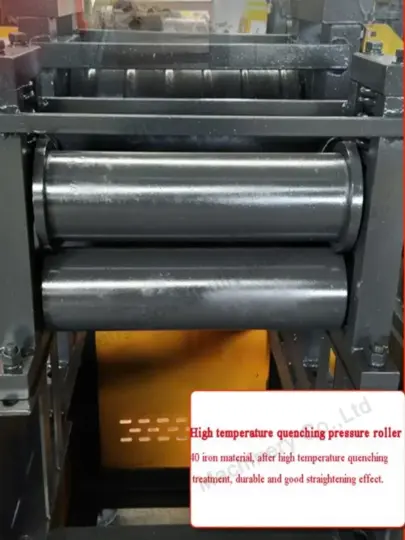

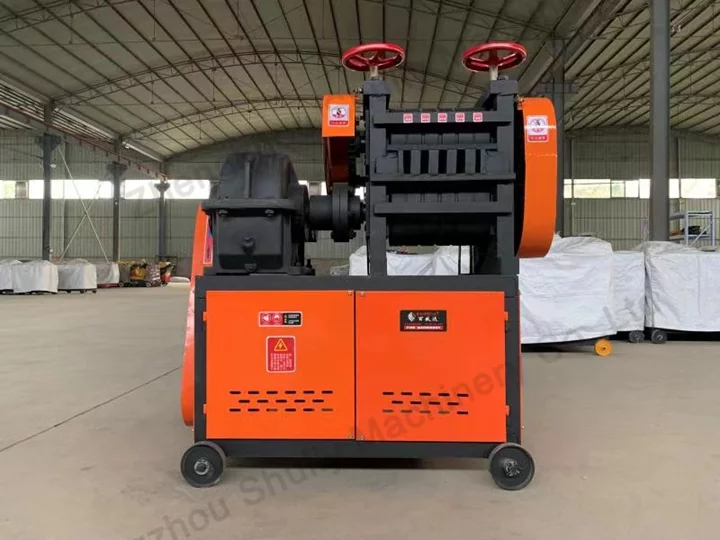

The steel bar straightening machine consists of a motor, a reducer, two sets of rollers, and a double-pressure adjusting bar.

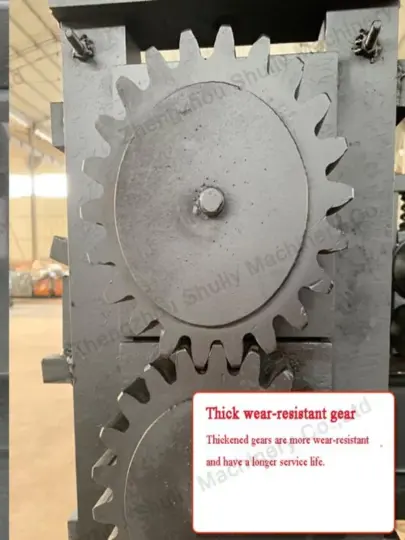

The waste rebar straightening machine is driven by a powerful motor and gear reducer, which is quick to regulate, highly efficient, and reliable, ensuring smooth operation without jamming or causing damage. The surface of the straightened steel bar is smooth without obvious scratches and maintains good straightness, making it ideal for reprocessing.

Steel Bar Straightening Machine Model And Parameters

ModelSL-6-10SL-6-14SL-8-16SL-14-25
Straightening rod diameter6-10mm6-14mm8-16mm14-25mm
Straightening times5 hole, 20 times/min5 hole, 20 times/min5 hole, 20 times/min6 hole, 20 times/min
Straightening length500-2000mm500-2000mm500-2000mm500-2000mm
Motor power4kw5kw5kw15kw
Machine weight570kg730kg750kg980kg
Machine dimension1100*720*1150mm1200*7890*1220mm1250*820*1300mm1550*890*1600mm

Note: Take our best-selling SL-6-14 as an example, it can handle raw materials with a diameter of 6-14mm, it has five holes, and can straighten 20 times per minute. It can handle 500 to 2,000 millimeters of raw material at a time. Details are described in the model list above. If you still don’t know which model to choose after reading the table, please contact us, and we will recommend the most suitable model for you according to your needs.

Characteristics Of Steel Bar Straightening Machine

  • High-speed Straightening: The machine quickly straightens steel bars to minimize defects and ensure that it is ready for further processing.
  • Cutting Capability: Equipped with cutting blades, the machine can easily handle large angle bends and cut the bar to the desired length, providing flexibility in the straightening process.
  • Efficient Operation: The straightening drum is driven by an electric motor and rotates at high speed, while the two conveyor rollers pull the steel bar forward. The crankshaft wheel drives the hammer head up and down to cut the bent profile.

Application Of Steel Bar Straightening Machine

This rebar straightener is widely used in construction projects such as highways, bridges, and concrete component production. It is an indispensable tool for recycling facilities and construction companies, providing a reliable solution for straightening and cutting scrap steel to increase material reuse and reduce waste.

  • Construction Industry. Reinforcing bars are indispensable materials in the construction of buildings, bridges, and infrastructures. Our steel bar straightening machines are widely used in construction sites to prepare steel bar that meets specifications.
  • Steel Recycling Or Steel Processing Plants. Steel recycling plants and steel processing plants utilize our machines to straighten and cut steel bars, which are then sold or used in the manufacturing process.
  • Manufacturing Units. For manufacturers who produce reinforced concrete, our steel bar straightening machines offer high precision and speed to handle large quantities of material.

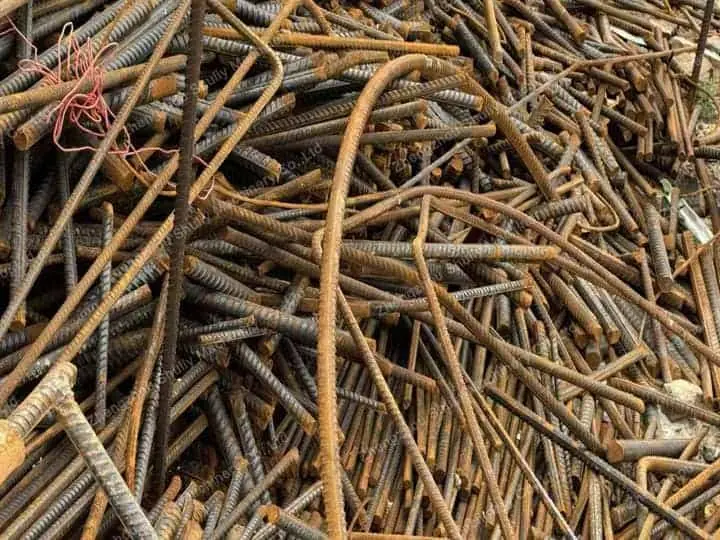

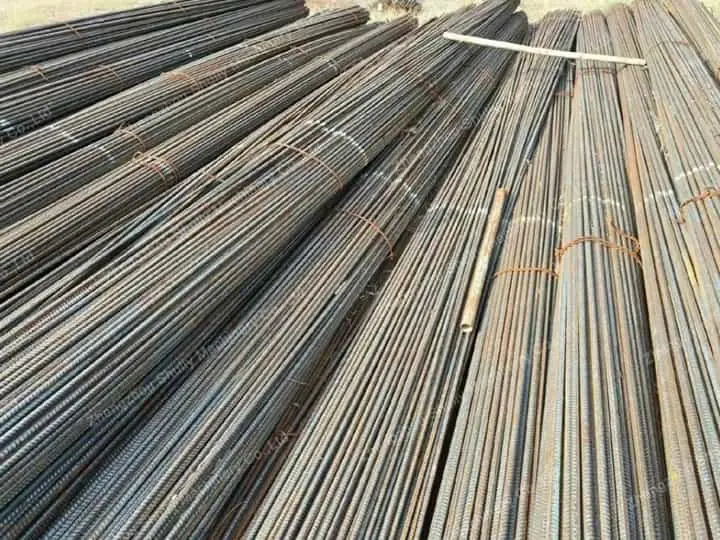

Steel Bar Straightening Before And After

Why Choose Shuliy?

  1. Company Capability. We have been specializing in recycling machinery for 14 years since 2011.

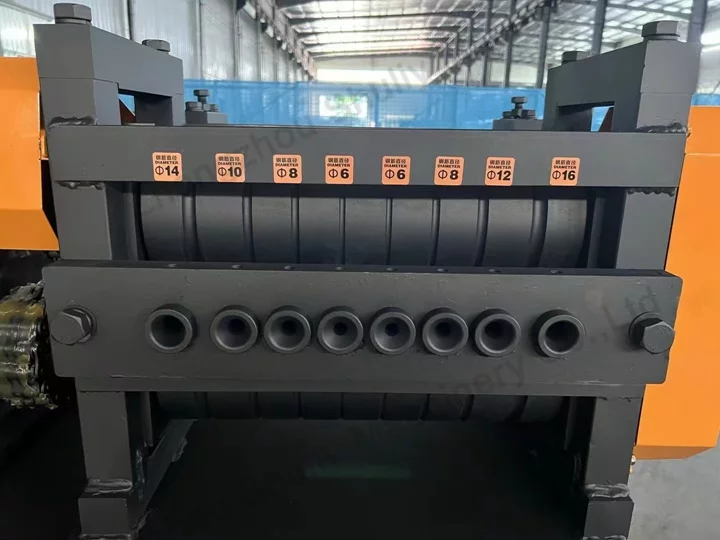

  2. Accept Customization. We have a variety of models for you to choose from. You can also customize the caliber size, customize the mobile or stationary model, customize the machine voltage, and customize the machine plug. We can also set aside one or two reserve calibers for you. The choice is yours.
  3. Extensive After-sales Service. Free spare parts, video technical support, online support, on-site installation, commissioning and training, on-site maintenance and repair services. We will test the machine before it leaves the factory and provide you with a video of the test run.

Frequently Asked Questions

How do I pick a model for this rebar straightener?

It depends on your raw materials, needs. If you can’t make up your mind, please feel free to contact us; we will customize the models and solutions for you according to your needs.

Is this waste rebar straightening machine easy to operate?

This features an easy-to-use control panel that simplifies the operating process. Even inexperienced operators can operate the machine efficiently after a short training period. We follow up with video training, one-on-one training, and telephone instruction.

What is the maximum capacity of this waste rebar straightening machine?

Our machine capacities range from 1 to 5 tons per hour, depending on your production requirements.

Is there aftermarket support for this rebar straightener?

Of course it does! Shuliy offers full after-sales support, including installation, training, and technical support, to ensure that your rebar straightener machine runs smoothly.

What should I do if there is a problem with the steel bar straightening machine?

Our machines are equipped with an emergency stop button. If the machine malfunctions, please press it, and then contact us. We will have maintenance personnel to guide you through troubleshooting and repair.
