Spiral Blade Forming Machine | Continuous and Single Flight Forming Machine

The spiral blade forming machine is a professional industrial forming machine used to manufacture screw conveyor blades and auger flights for material conveying systems.

The machine can process steel plates with a thickness of 2–25mm, produce spiral blades with outer diameters ranging from 40mm to 800mm, and achieve pitch ranges from 50mm to 1500mm, making it suitable for manufacturing various screw conveyors, augers, drilling tools, and spiral transport equipment.

Applications of the Spiral Blade Forming Machine

The spiral flight forming machine is widely used in many industrial sectors.

Typical applications include:

• Screw conveyor manufacturing
• Agricultural machinery
• Environmental protection equipment
• Mining machinery
• Chemical industry
• Food processing equipment
• Pharmaceutical equipment
• Drilling and auger manufacturing

These industries rely on spiral blades for material conveying, mixing, and feeding processes.

Types of Spiral Blade Forming Machines

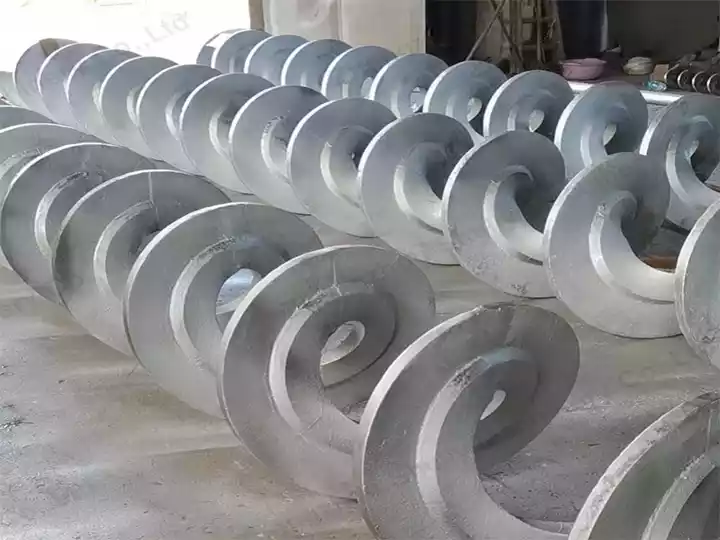

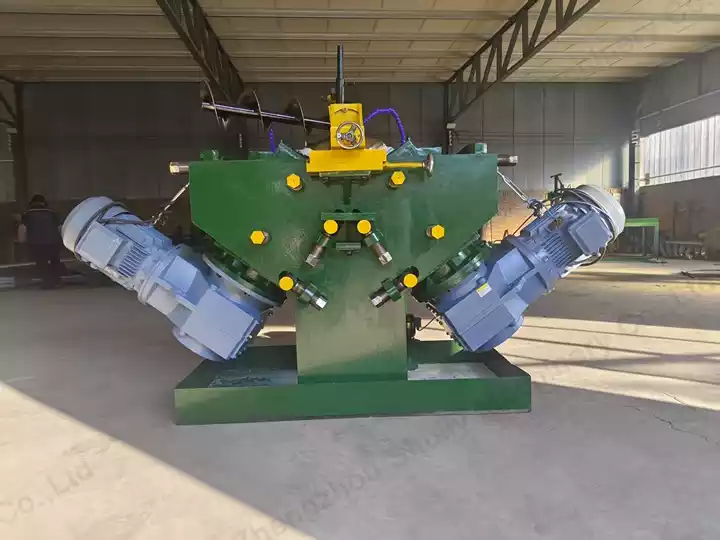

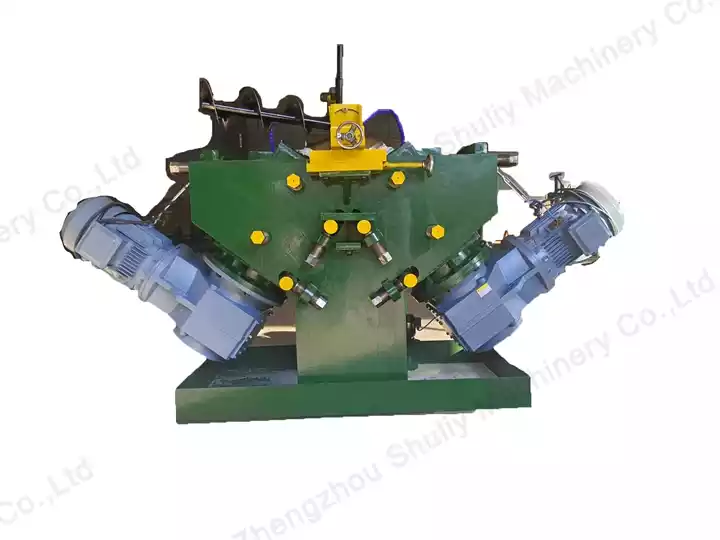

Continuous Spiral Blade Forming Machine

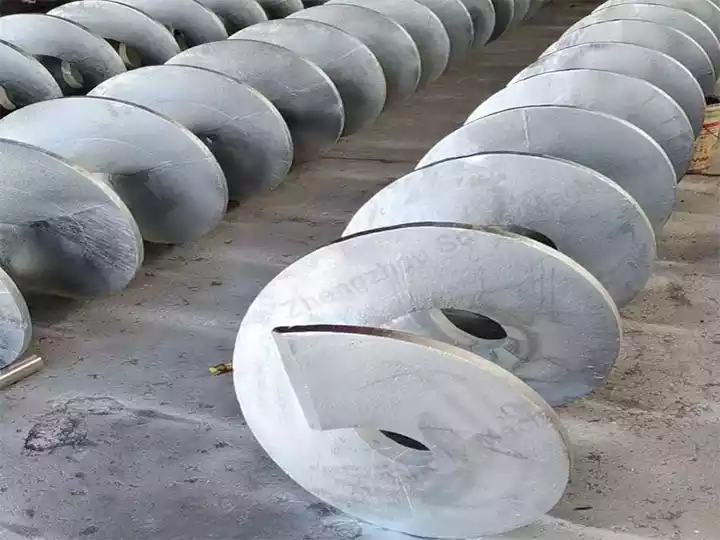

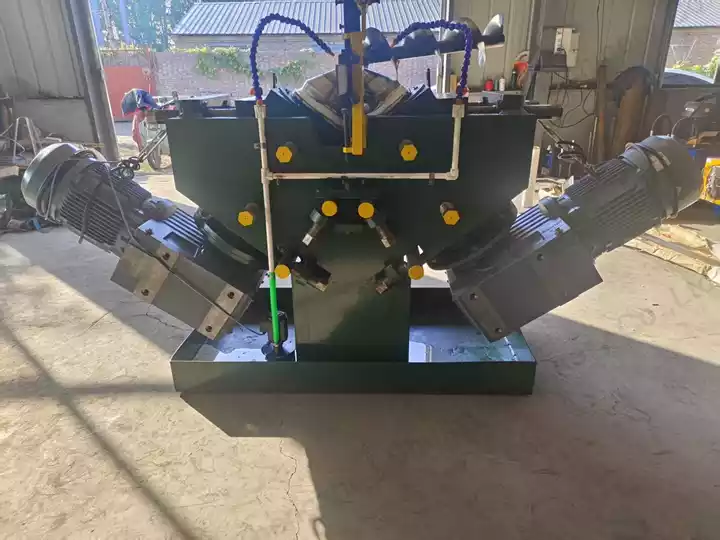

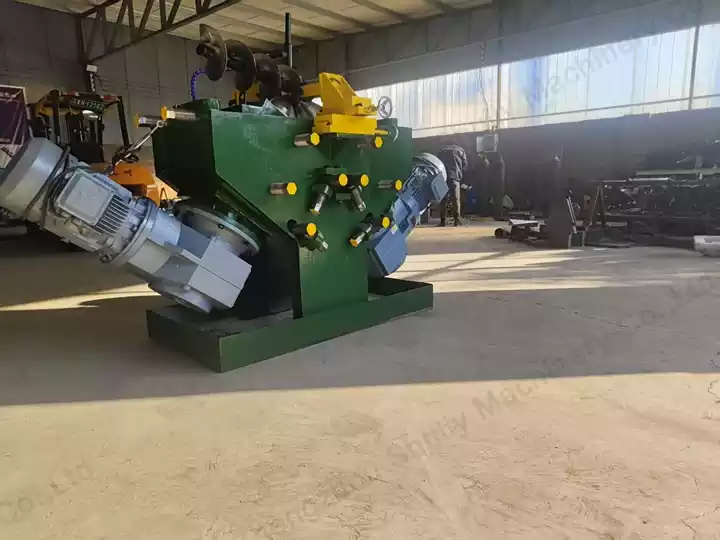

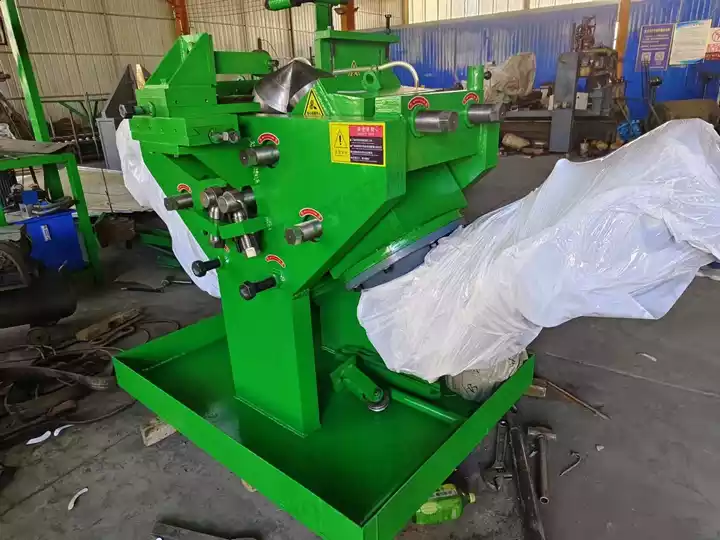

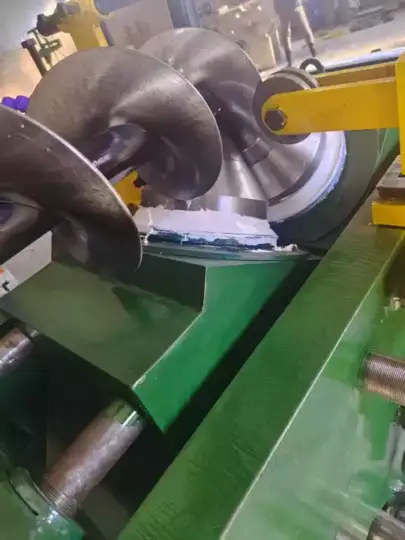

The continuous spiral blade forming machine is designed for high-efficiency production of continuous screw flights. It uses dual rolling rollers to shape steel plates into continuous spiral blades.

This machine is ideal for industries that require long spiral blades with stable pitch and uniform diameter.

Main Features

• Continuous rolling process for long spiral blades
• Dual-roller forming system for stable operation
• Adjustable pitch and diameter
• Suitable for medium and large-scale screw conveyor manufacturing

Technical Specifications

Model	LX40-5	LX120-5	LX150-5
Plate Material	SPHC / SPHD / SPHE	SPHC	SPHC / SPCC
Voltage	380V	380V	380V
Main Power	15KW	15KW × 2	15KW × 2
Plate Thickness	2–4 mm	2–6 mm	2–6 mm
Single Side Width	15–40 mm	20–120 mm	20–150 mm
Outer Diameter Range	40–300 mm	60–750 mm	80–800 mm
Pitch Range	50–800 mm	50–800 mm	50–800 mm
Inner Hole Error	≤ ±3 mm	≤ ±3 mm	≤ ±3 mm
Outer Diameter Error	≤ ±5 mm	≤ ±5 mm	≤ ±5 mm
Equipment Weight	4T	4T	5.5T

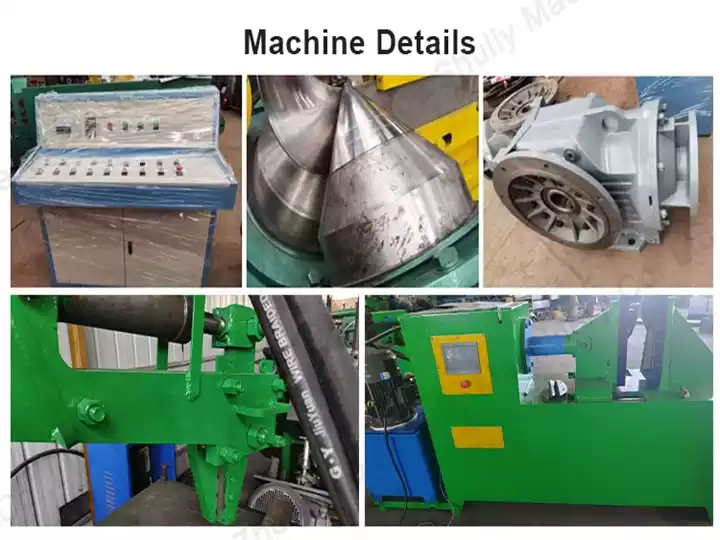

Equipment Configuration

The continuous spiral blade forming machine includes:

• Spiral blade forming host
• Mechanical loading table
• Hydraulic shearing unit

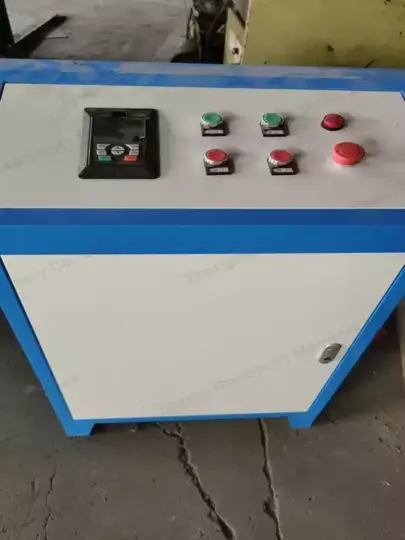

• Power distribution cabinet

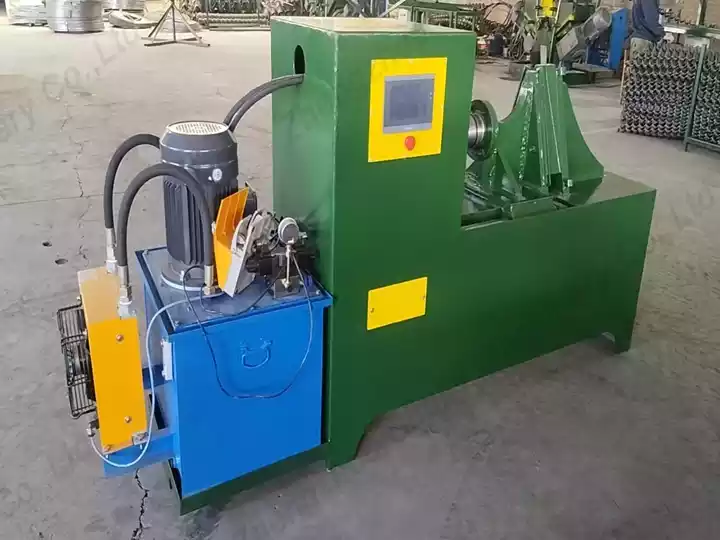

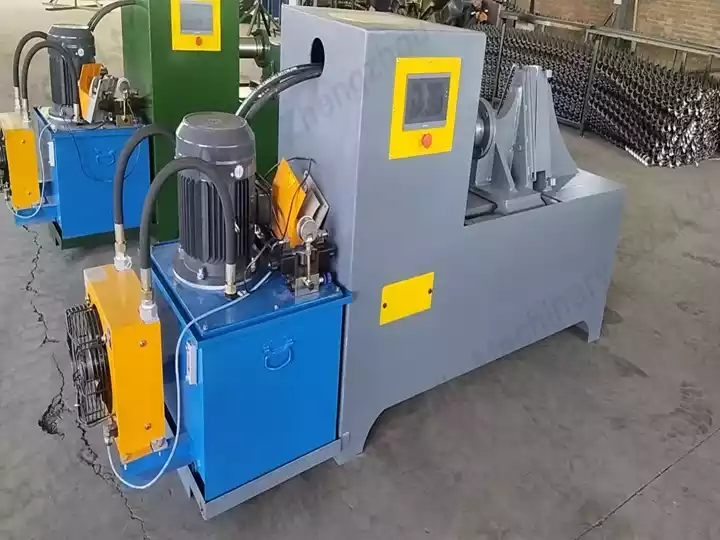

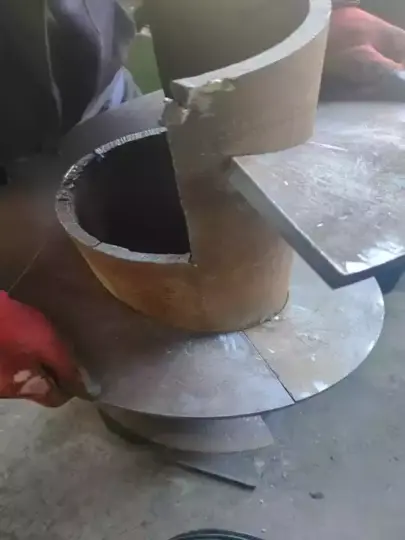

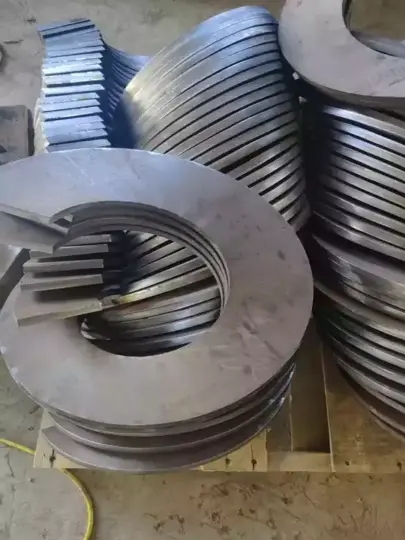

Single Flight Spiral Blade Forming Machine

The single-flight spiral blade-forming machine is designed to produce individual spiral flights that can later be welded into screw conveyors.

It offers higher flexibility for customized spiral blades and is suitable for various materials, including carbon steel, stainless steel, and wear-resistant plates.

Main Features

• Suitable for customized spiral blades
• Compatible with different materials and thicknesses
• High forming accuracy
• Flexible diameter and pitch adjustment

Technical Specifications

Model	250-12	350-16	350-25	500-16	800-25
Processing Diameter	200×2 + shaft	300×2 + shaft	300×2 + shaft	400×2 + shaft	700×2 + shaft
Pitch Range	100–500 mm	100–700 mm	100–700 mm	100–1000 mm	200–1500 mm
Max Carbon Steel Thickness	12 mm	16 mm	25 mm	16 mm	25 mm
Max Stainless Steel Thickness	10 mm	12 mm	20 mm	12 mm	16 mm
Max Wear Plate Thickness	6 mm	8 mm	16 mm	8 mm	16 mm
Mold Height	260 mm	355 mm	355 mm	500 mm	850 mm
Power	4 kW	5.5 kW	7.5 kW	7.5 kW	11 kW
Voltage	380V / 50Hz	380V / 50Hz	380V / 50Hz	380V / 50Hz	380V / 50Hz

Working Principle of Spiral Blade Forming Machine

The spiral blade forming machine shapes steel plates into spiral flights through mechanical rolling and pressing.

Processing steps:

• The steel plate is fed into the forming rollers
• The rollers apply pressure to gradually shape the spiral structure
• The blade diameter and pitch are adjusted during forming

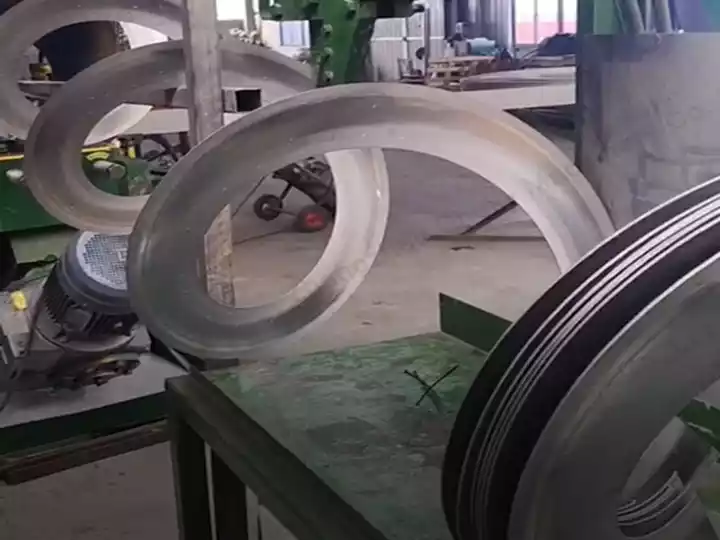

• Finished spiral flights are discharged for welding or installation

This forming process ensures:

• Accurate spiral pitch
• Uniform blade thickness
• High structural strength

Advantages of Spiral Blade Forming Machine

• High forming accuracy for spiral blades
• Suitable for carbon steel, stainless steel, and wear plates
• Adjustable blade diameter and pitch
• Strong structure for heavy industrial use
• High production efficiency
• Flexible customization capability
